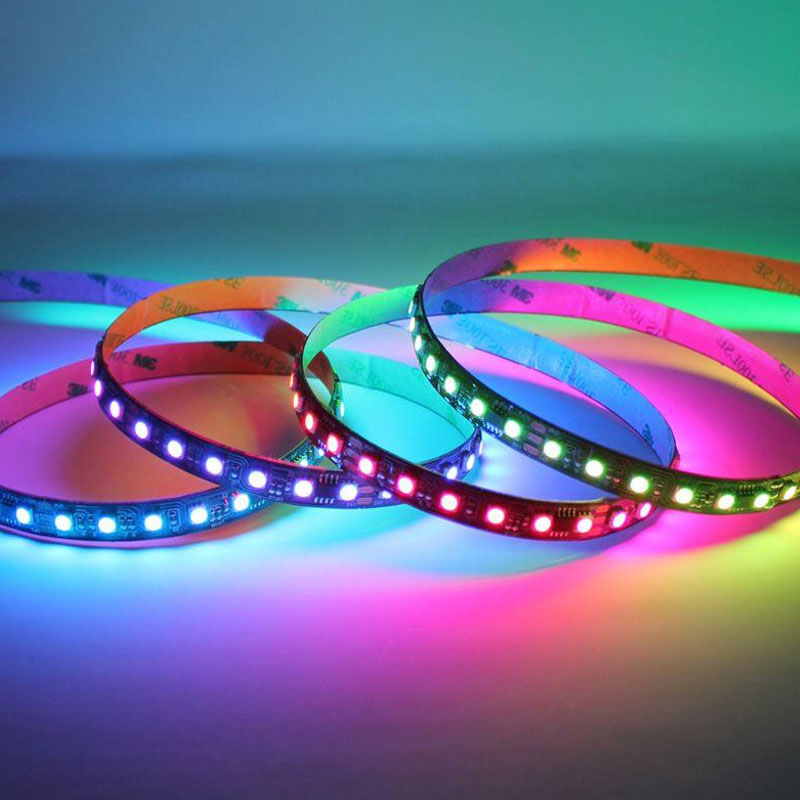

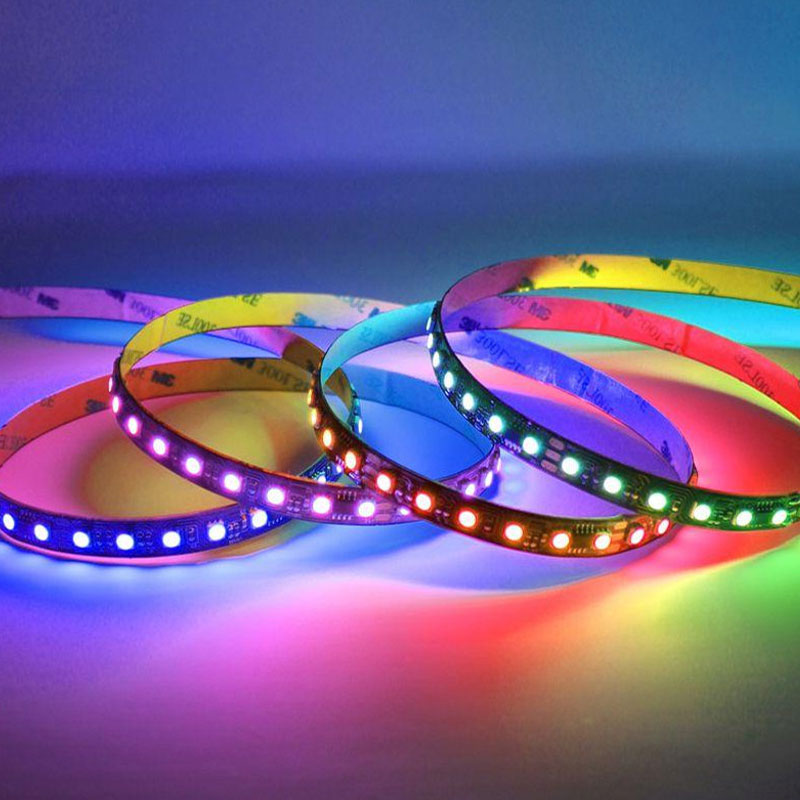

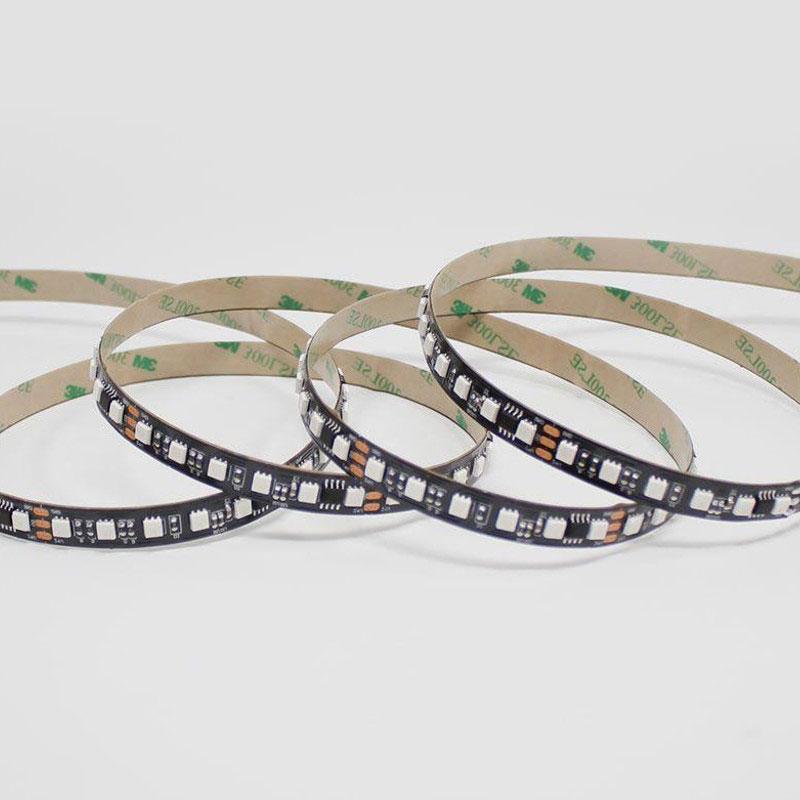

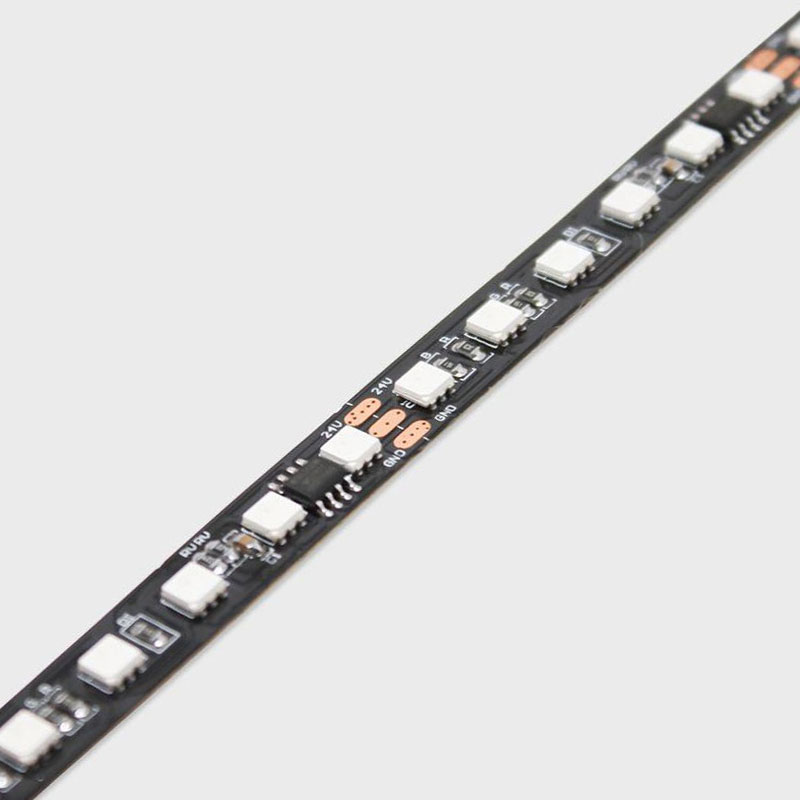

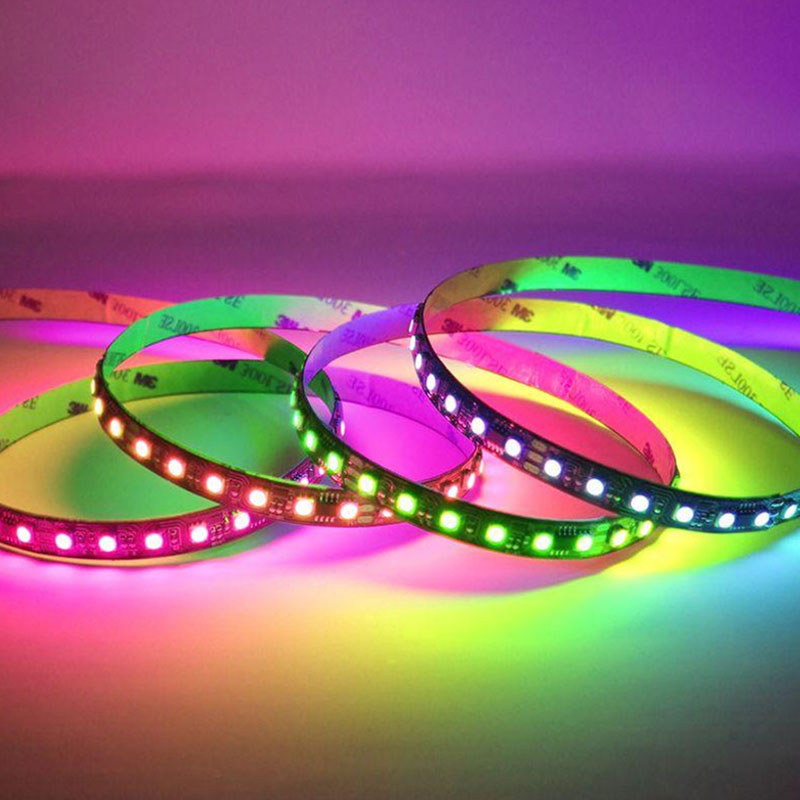

Introducing our 24V Colour Changing RGB Digital Pixel LED Strip Light. Pair with our Digital Pixel LED Controller to achieve light chasing effects. Featuring 96 LEDs per metre and 16 Pixels per metre, this LED strip light has 6 controllable sections within a 1 metre length. Compatible with WS2811 pixel protocol which is commonly used in the pixel lighting industry. A 120° beam angle and brightness of up to 722lm per metre make it perfect for a variety of installations.

Part of the Toning Digital Pixel range it features 2x 500mm pre-attached cables. These cables have tinned ends making them suitable for soldering straight away. Capable of achieving up to 5 metres of light when powered from one end.

Available in both RGB colour changing. Comes as a 5 metre or 20 metre reel as standard and can be cut to your required length using the cut points which are located at 62.5mm intervals.

Our Toning Digital Pixel LED Strip Light is manufactured using high quality materials and components and comes with a 2 year warranty as standard.

Installation:
Available in IP20 making it suitable for indoor installation. All our flexible LED strip lights feature an adhesive backing. Remove the protective backing and stick to a surface ensuring it is smooth and clean.

We recommend installing our LED strip lights within a LED Profile. These offer protection for the strip lights and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.

Features:
Voltage: 24V
Max. Power: 22.0W/m
Pixels per metre: 16 Pixels
Cut Points: 62.5mm
Beam Angle: 120°
PCB Weight: 4oz
Lumens: Up to 722lm/m
IC Type: WS2811
Warranty: 2 Years

Product Specification
Warranty (Years):    2
Dimmable:    Yes
Length:16.4 ft (5 m)
Max. Run Length (m):    5
Application Environment:    Indoor
Ingress Protection (IP):    20
Input Voltage Min. - Max (V):    24-24V
Cable Both Ends:    Yes
Cut Points (mm):    62.5
LEDs Per Metre (LEDs/m):    96
Pixels Per Metre (Pixels/m):    16
Product Height (mm):    2
Product Weight (g):    2
Width (mm):    10
Battery Included:    No
Items/Sets Per Pack：    1
Beam Angle (°)：    120
Dimensions LxWxH (mm)：    5000x10x2
IC Type：    WS2811
Lumens Per Metre (Lm/m)：    666
Lumens Per Watt (Lm/W)：    37
Family Name：    Pixel SMD
