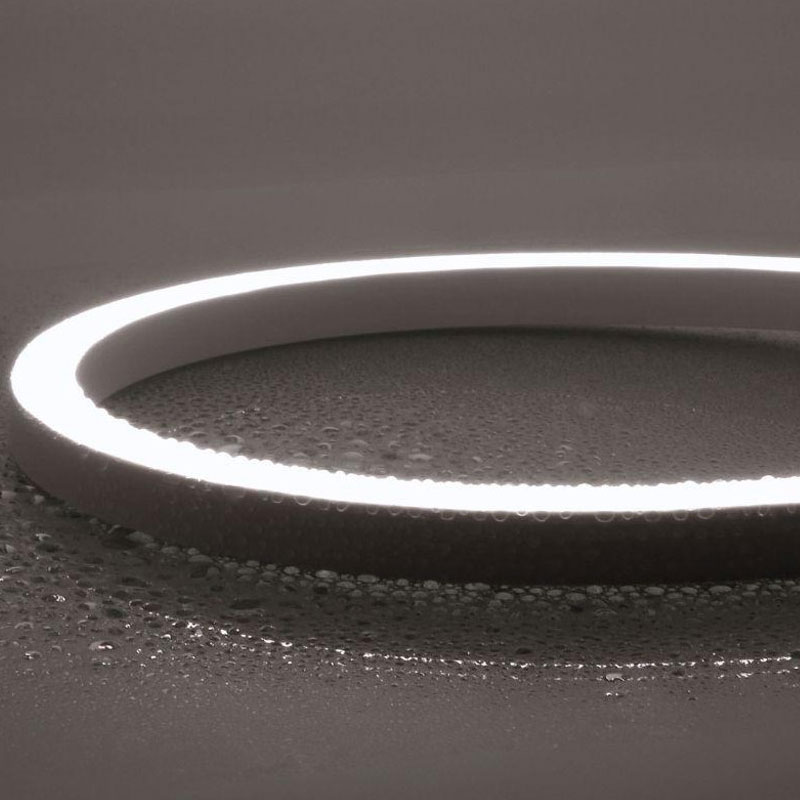

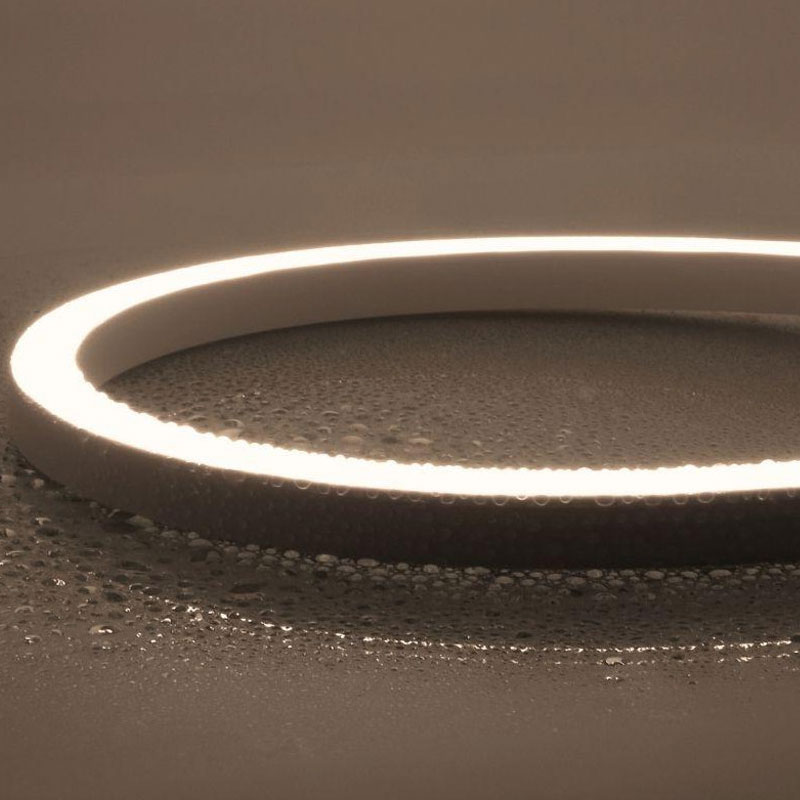

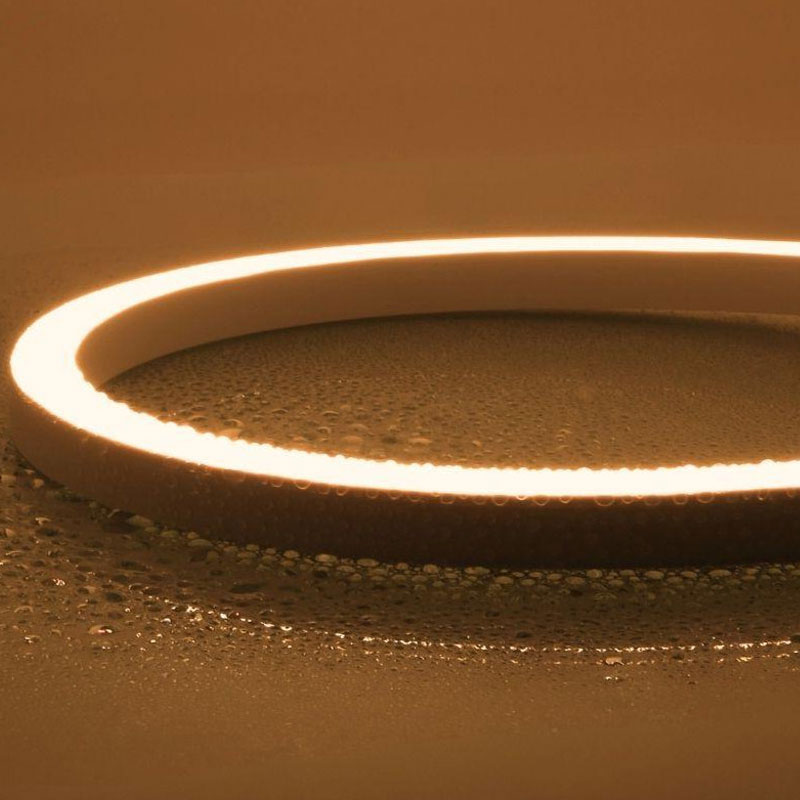

Introducing Our 16x17 Horizontal Bend LED Neon Flex – 24V | Architectural Range

The 16x17 Horizontal Bend LED Neon Flex offers a robust and efficient lighting solution for architectural applications requiring directional horizontal bending. Designed for both interior and exterior use, it’s ideal for façades, coves, and architectural features where consistent, high-quality linear lighting is required.

This model utilises 2835 LEDs at a density of 108 LEDs per metre, available with >80 or >90 CRI for enhanced colour rendering. It delivers up to 480 lumens per metre, depending on the selected colour temperature and CRI. Colour options include a broad range from 2200K to 5700K to suit any project specification.

Manufactured with a durable silicone housing and fitted with an IP68-rated injection-moulded connector, this product withstands challenging environments including UV exposure, salt water, flame, and solvents. It also features anti-static, self-cleaning properties to maintain its finish and light output over time.

Key Features
Horizontal bend configuration
IP68-rated silicone injection-moulded connector
Dimensions: 16mm x 17mm
Available CCTs: 2200K, 2700K, 3000K, 4000K, 5700K
CRI options: >80 and >90
Lumen output up to 480lm/m
SDCM <3 for consistent colour rendering
Operating temperature: -40°C to +55°C
Supplied by the metre with 55.6mm cut points
UV, flame, salt water, and solvent-resistant
5-year warranty
Dimmable

Specifications
Voltage: 24V DC
Length: 16.4 ft (5 m)
Power Consumption: 12W/m
LED Density: 108 LEDs per metre
Beam Angle: 110°
CRI: >80 / >90
Bend Direction: Horizontal
Min. Bend Diameter: 300mm
Max. Run Length: 15m (single-end) / 30m (double-end)
IP Rating: IP68
IK Rating: IK10
Material: Silicone
Operating Temperature: -40°C to +55°C
Warranty: 5 Years

Installation & Bespoke Options
Supplied by the metre with 55.6mm cut increments, this Neon Flex supports custom cable lengths and directions. Use with compatible mounting accessories for optimal installation.
