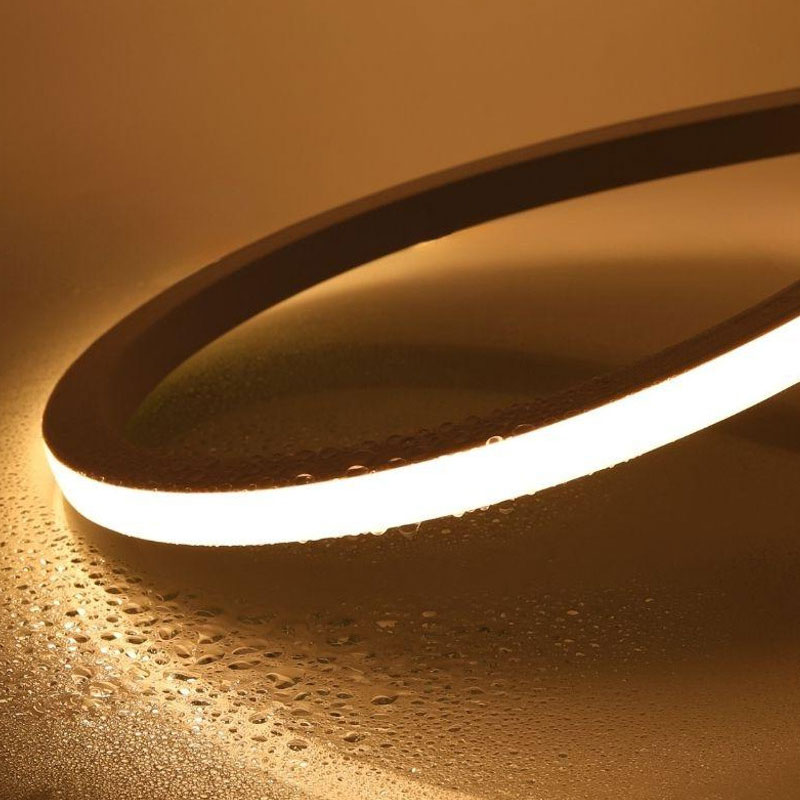

Introducing Our 16x17 Vertical Bend LED Neon Flex – 24V | Architectural Range

The 16x17 Vertical Bend LED Neon Flex (12W p/m) offers a compact and powerful lighting solution designed for architectural installations requiring vertical bending. Ideal for external applications, this LED flex delivers consistent performance and is engineered to endure tough environments with exceptional resilience and precision.

Utilising 8oz copper belt technology and an integrated FPCB, the flex ensures stable current transmission and reduced voltage drop. Strategic reinforcement around the SMD LEDs protects the circuit against physical stress and misalignment, reducing the risk of mechanical damage during installation or operation.

Constructed with UV-resistant silicone, the Neon Flex features anti-static, self-cleaning properties, which help maintain clarity and finish over time—even in dusty or exposed environments. Withstanding temperatures from -40°C to +55°C, the unit is fully rated for outdoor use, offering resistance to UV, flame, solvents, and salt water.

Sold by the metre with 55.6mm cut points, it’s suited to custom installations with selectable CRI levels of >80 or >90. A secure IP68-rated silicone injection-moulded connector ensures waterproof and reliable performance in demanding conditions.

Key Features
Vertical bend configuration
IP68-rated silicone injection-moulded connector
Dimensions: 16mm x 17mm
CRI options: >80 and >90
Lumen output up to 580lm/m (depending on CCT and CRI)
SDCM <3 for high colour consistency
Operating temperature: -40°C to +55°C
Supplied by the metre with 55.6mm cut points
UV, flame, salt water, and solvent-resistant
5-year warranty
Available in 2200K, 2700K, 3000K, 4000K, 5700K
Dimmable

Specifications
Voltage: 24V DC
Power Consumption: 12W/m
Length: 16.4 ft (5 m)
LED Density: 108 LEDs per metre
Beam Angle: 110°
CRI: >80 / >90
Bend Direction: Vertical
Min. Bend Diameter: 300mm
Max. Run Length: 15m (single-end) / 30m (double-end)
IP Rating: IP68
IK Rating: IK10
Material: Silicone
Operating Temperature: -40°C to +55°C
Warranty: 5 Years

Installation & Bespoke Options
Supplied by the metre with 55.6mm cut increments, this Neon Flex can be tailored in length, cable direction, and cut spacing. Use with compatible mounting accessories for optimal installation results.
