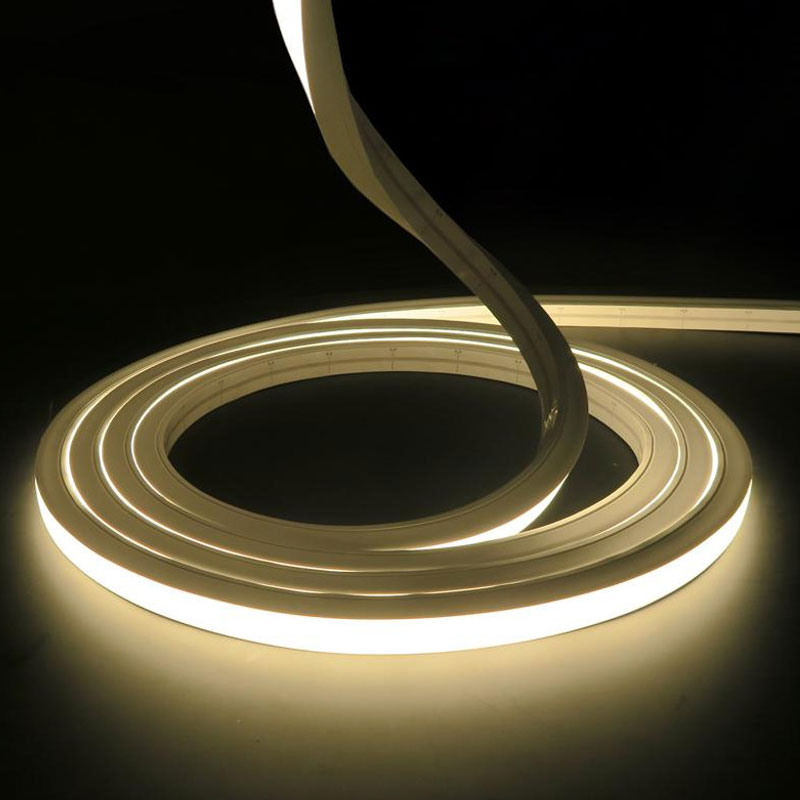

Introducing Our 20x20 CCT Dual Bend LED Neon Flex
Transform your lighting projects with our groundbreaking innovation, the 20x20mm CCT Dual Bend LED Neon Flex. Seperate white LED chips allows you to select colours through the kelvin range. This versatile LED neon flex is engineered for both horizontal and vertical bending applications, making it ideal for intricate and dynamic designs in architectural features, retail displays, signage, and residential projects. Crafted with durable materials and precision-engineered, it delivers a sleek, high-end finish with consistent illumination around corners and curves.

From architectural elements to decorative lighting, this LED neon flex redefines versatility with its professional-grade features and performance. Designed to meet the demands of lighting designers, electricians, and contractors, it elevates any space with a seamless, professional-grade lighting solution.

Important Installation Note:
The NEONDUAL2020 has a ±0.5mm tolerance. Customers should measure precisely before routing out the groove for fitting the neon flex to ensure a perfect installation.

Key Features
With dual bend flexibility, this LED neon flex bends horizontally and vertically, ideal for complex layouts. Available in 2300K~6000K. It offers uniform, shadow-free illumination across a CCT range. The durable, anti-yellowing material is indoor and outdoor-ready with an IP67 rating. A 120° beam angle delivers smooth light, and sold by the metre and cable length options enable a custom setup. Backed by a 5-year warranty.

Specifications
Voltage: 24V
Max. Power: 15.4W/m
LED Density: 240 LEDs/m
Min. Bend Diameter: 200mm (vertical), 280mm (horizontal)
Lumens per metre: Up to 800lm
CRI: >90
Beam Angle: 120°
Dimensions: W20mm x H20mm
SDCM: <3
Warranty: 5 Years
IP Rating: IP67 (suitable for indoor and outdoor use)

Installation
The IP67-rated LED Neon Flex is designed for both indoor and outdoor applications. Cable entry is optional depending on your requirements. For optimal performance and secure placement, we recommend using mounting tracks.

Product Specification
Warranty (Years):    5
Control Signal - Input:    PWM
Length: 16.4 ft (5 m)
Dimmable:    Yes
Dimming Type:    PWM
Rated Life (Hours):    50000
Current Max. Rated (A):    0.58
Max. Run Length (m):    5
Anti-Yellowing:    Yes
Application Environment:    Hospitality, commercial, residential, signage
Body Material:    Silicone
Ingress Protection (IP):    67
Interior or Exterior Use:    Exterior
Saltwater Resistant:    Yes
Solvent Resistant：    Yes
Storage Humidity Max. (°C)：    60
UV Resistant：    Yes
Working Humidity Max. (°C)：    80
Input Voltage Min. - Max (V)：    24-24V
Body Colour：    White
Cable Weight (AWG)：    20
Chip Type：    2835
Copper Foil Weight (oz)：    3
Entry Cable Direction：    Rear
LED Module Replaceable：    false
LED Pitch (mm)：    4.17
LEDs Per Metre (LEDs/m)：    240
Min. Bend Radius (mm)：    100
Product Height (mm)：    20
Product Weight (g)：    2500
Width (mm)：    20
Constant Voltage / Constant Current：    CV
End Caps Included：    No
Beam Angle (°)：    120
CCT Max. (Kelvin)：    6000
CCT Min. (Kelvin):    2300
CRI:     90
Lumens Per Metre (Lm/m):    420
Lumens Per Watt (Lm/W):    30
R9 CRI Value:    63
SDCM:    3
Electrical Safety Class:    III
Operating Temperature Min. - Max. (°C):    -20℃ to 45℃
Colour Temperature Min. - Max. (Kelvin):    2300-6000K
Certification:    EMC - 2014/30/EU
Bend Direction:    Dual
Cable Sheath Material:    Silicone
Family Name:    Pro Series
